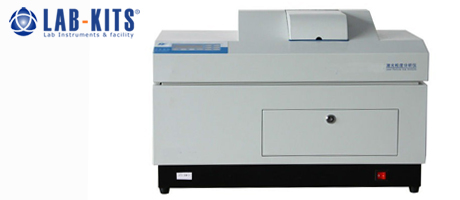

DescriptionRelated Products The PSA2000M is a laser particle size analyzer designed for abrasive industries. It combines the Mie light scattering principle, a patented technique of Fourier transformation of converging light and an unconstrained fitting program, to ensure the reliability and reproducibility of the measurement results. The results execute the standards of abrasive industry. Main Features： Principle: Particles of different sizes scatters the illuminating laser into different patterns. In this instrument He-Ne laser is used to illuminate and a photon detector array measures the scattered laser. Software automatically converts the patterns into size distributions.

DescriptionRelated Products

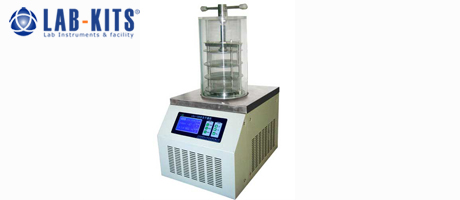

FD-10 Freezing Dryer is applicable for freeze-drying test of laboratory samples and suitable for small amount of production.
FD-10 series include the following types: Regular type, Top-press type, multi-manifold T type and multi-manifold Top-press type.

Description

Main technical parameters:

Measurement range:
carbon: 0.0001% -10.0000% (can be expanded to 99.9999%)
Sulfur: 0.0001% -3.5000% (can be expanded to 99.9999%)
Analysis error: in line with GB/T20123-2006/ISO15350: 2000 standard
Analysis time :25-60 seconds adjustable (usually 35 seconds or so)
High-frequency furnace: power ≥ 2.5kVA; frequency: 18MHz
Electronic Balance: non-quantitative sample weighing;
Reading accuracy: 0.0001g
Working environment: room temperature :10-30 ℃;
Relative humidity: less than 90%
Power supply: requires a good grounding connection
voltage: AC220V ± 5%; frequency: 50Hz ± 2%
Oxygen: purity ≥ 99.5%, input pressure: 0.18MPa ± 5%
